Description
Functions
▪ Insulation resistance measurement up to 1,000 V*
▪ TDR: time domain reflectometry
▪ Envelope curve display for intermittent faults – even small changes in impedance are made visible and saved.
▪ SIM/MIM: secondary/multiple impulse method with surge voltage or in DC mode
NEW: 20 reflection measurements per HV pulse
▪ ICM: impulse current method with surge voltage or in DC mode
▪ Surge mode for acoustic pin-pointing up
▪ DC voltage testing
▪ Cable sheath testing
Features
▪ Easy operation thanks to intuitive operational concept
▪ Integrated proven cable fault pre-location methods
▪ Automatic detection of cable end and fault position
▪ Dynamic input signal gain
▪ Automatic saving of all measurement data
▪ Storage for more than 100,000 measurements
▪ Interface to GIS databases*
▪ Precise fault location methods for every type of fault and various cables
▪ Modular system, easily expandable for cable testing and diagnostics

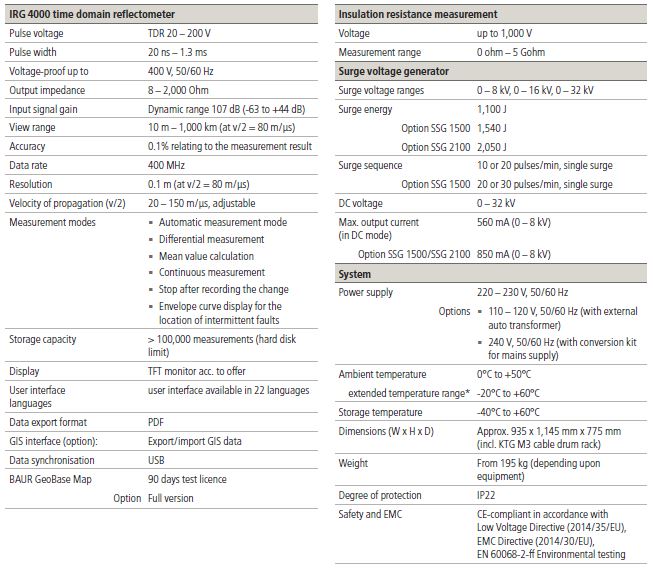

Technical data
