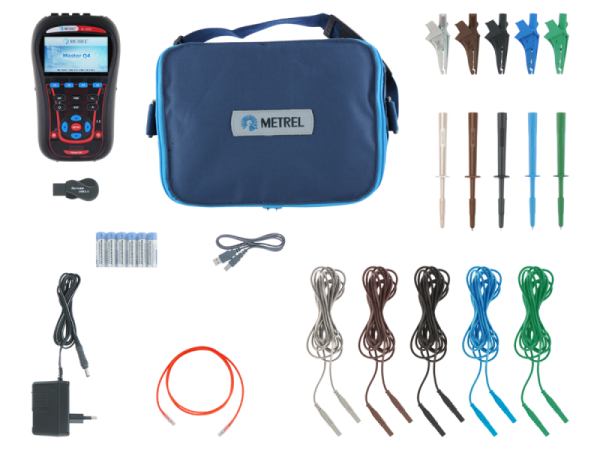

MI 2885 MASTER Q4

• Voltage: TRMS, peak, crest factor (4-channel);
• Current: TRMS, peak, crest factor (4-channel);
• Power (active, reactive, apparent);
• Power measurements fully compliant with IEEE 1459 (active, non active, fundamen?tal, harmonic, load unbalance);
• Unbalance, flicker measurement;
• Harmonic and interharmonic analysis up to 50th harmonics, THD measurement;
• Energy (active, reactive, generated, consumed);
• Capturing and recording of power supply events (shutdowns, interruptions, swells, dips);
• Inrush currents monitoring and recording;
• Waveform/inrush displaying, snapshot and recording;
• Power quality analysis according to EN 50160;
• Recording up to 7 adjustable alarms;
• Temperature measurement;
• Power factor cos ?.

• 4-voltage channels with wide measurement range: 0 … 1000 Vrms (CAT III / 1000 V);
• 4-current channels with support for automatic clamp recognition and ?on instrument? range selection;
• Automatic Smart Clamp detection and Smart Clamp range selection;
• Compliance with power quality standard IEC 61000-4-30 Class S;
• Complete power quality analysis according to EN 50160 including signalling and interharmonics;
• Support for microSD memory card (8-GB supplied with the instrument) up to 32GB;
• Color-coded input terminals and termi?nal labels to suit your application region;
• Intuitive main menu and large icons that makes the equipment very easy to navigate and configure;
• Powerful PC SW PowerView3 enables downloading, view, analysis of recorded data and professional report creation;
• Flexible clamps (without additional power supply) are included in the Euro set;
• Remote communication via Ethernet (GPS clock synchronization – optional).

PowerView PC SW platform contains a package of functionalities needed for profund evaluation of power quality phenomena and creation of complex reports like:

• Data download
• Predefined EN 50160 power quality test report
• Data merge
• Transfer of test data to other applications (MS Excel, MS Word, etc.)
• Filtering of recorded data
• Tool for repairing of downloaded results to prevent loss of data during transmission

Dimensions: 230 x 140 x 80 mm

Mass: 1 kg
