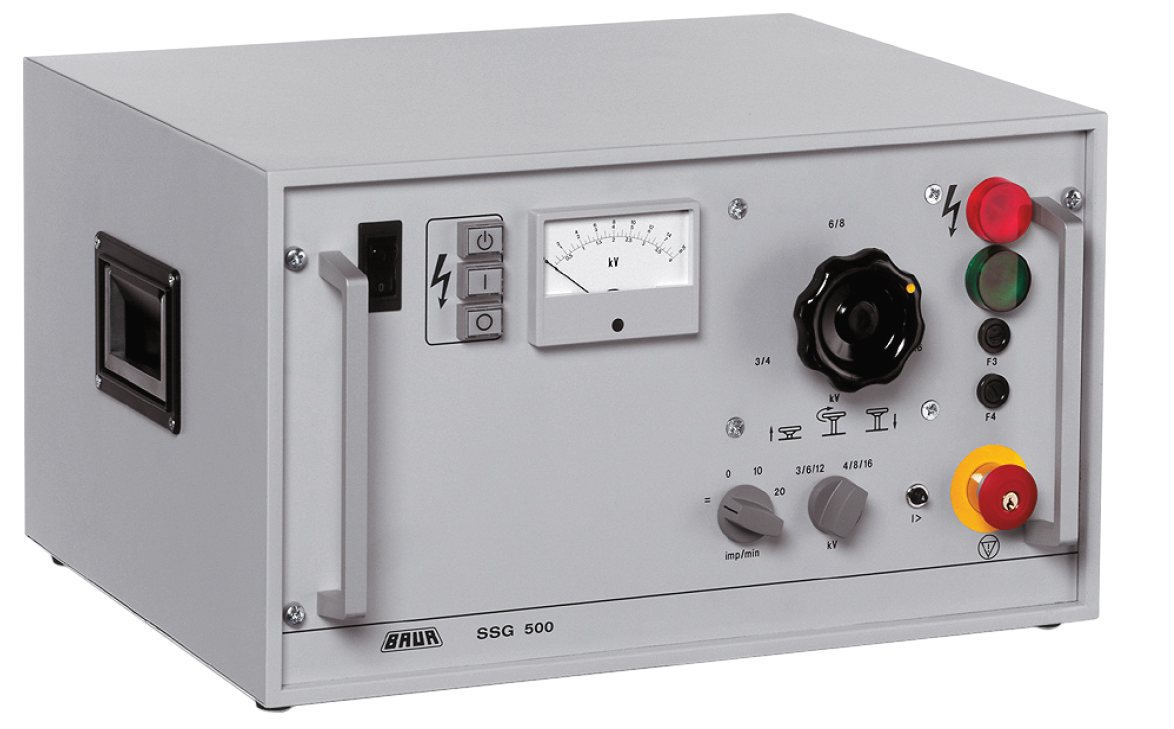

Description
Functions
▪ Generates surge and DC voltage
▪ Suitable for the following methods in combination with optional devices:
– TDR Time Domain Reflectometry(with IRG* time domain reflectometer)
– SIM/MIM secondary/multiple impulse method (with SA 32* SIM/MIM coupling unit and IRG* time domain reflectometer)
– ICM impulse current method(with inductive coupler SK 1D*)
– Acoustic pin-pointing (with BAUR UL 30* universal receiver and accessories set*)
– DC voltage testing up to 16 kV
Features
▪ 6 selectable surge voltages up to 16 kV
▪ High output current up to DC 480 mA
▪ Automatic surge mode or manual triggering of voltage surges
▪ Rapid surge sequence up to 20 surges/min
▪ Surge energy up to 512 J (can be switched to 56 %)
▪ Electromagnetically actuated surge switch
▪ Voltmeter with 3 display ranges
▪ Safety control unit according to DIN EN 50191
▪ Integrated automatic discharge unit
▪ Overcurrent protection switch with thermal and magnetic triggering
▪ Connection option for external emergency off unit with signal lamps

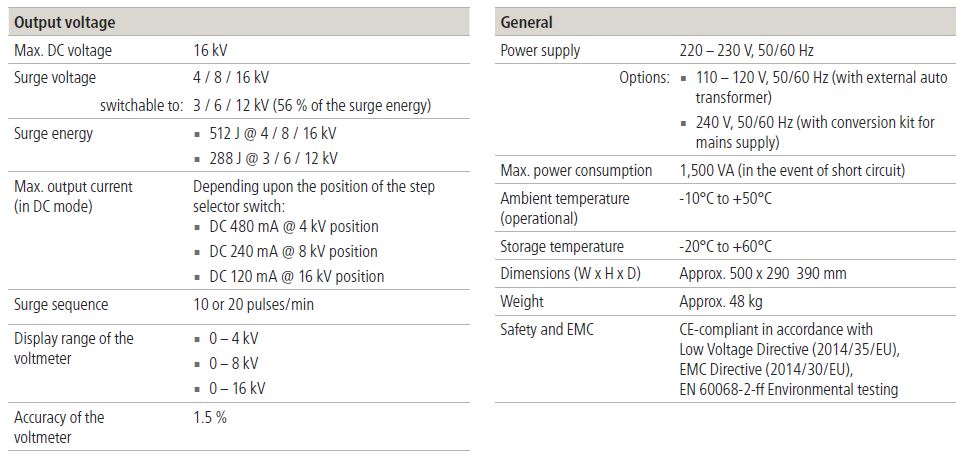

Technical data
