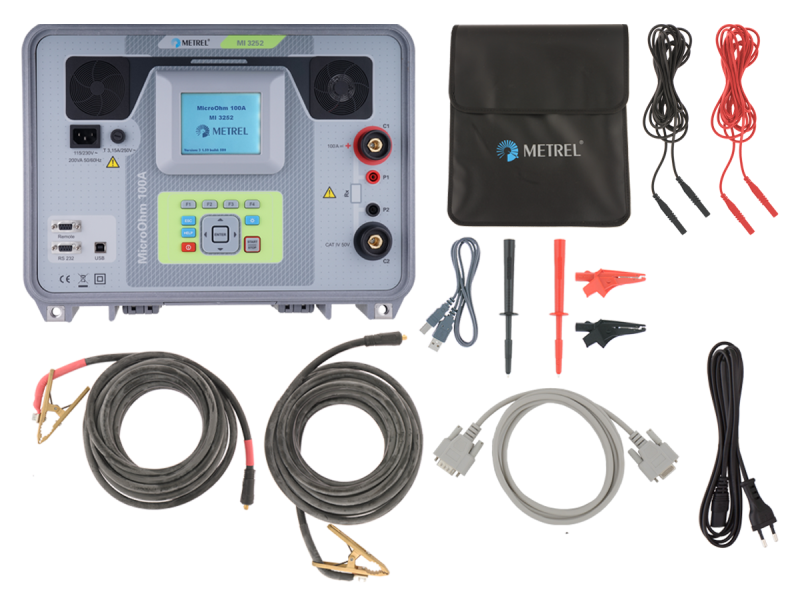

MI 3252 MICROOHM 100A

• Resistance measurement: wide measuring range (1 n? … 20 ?)? adjustable test current (100 mA … 100 A)
• Voltage drop measurement
• Bar graph: on screen resistance bar graph

• Safe: sustain external voltages in case of wrong connection, protection level (CAT IV, 50 V); automatically detects continuity in current circuit.
• Single and continuous measuring mode.
• Portable: rugged carrying case with a handle and lightweight design? enable easy moving the instrument between sites.
• High protection degree: IP 64.
• Accurate: 1 n? best resolution with 0.25% accuracy.
• Custom limits: the limits can be set for PASS or FAIL evaluation of test result.
• Battery powered: the instrument enables measurements with 100 A for up to 10 minutes when powered from internal battery only.
• Memory: built-in memory enables storage of up to 1000 test results.
• Downloadable: downloads test results via RS232 or USB cable directly to the PC with the help of the software.

Dimensions (w x h x l):?410 X?175 X?370 mm

Weight (with batteries, without accessories): 11.8 kg
