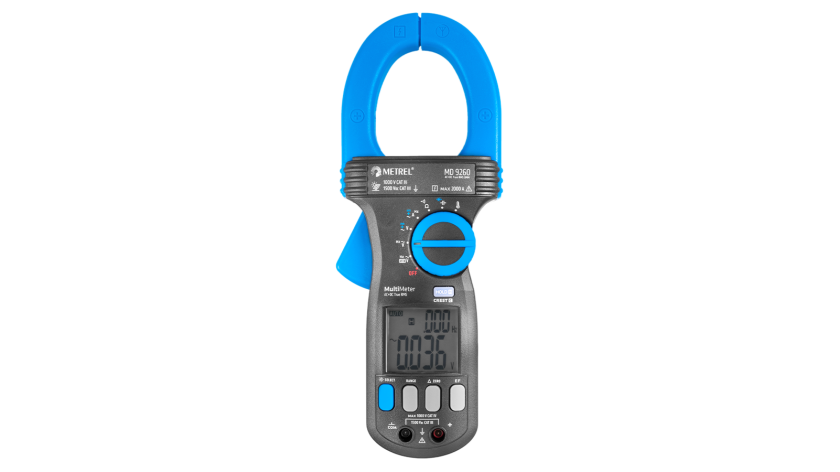

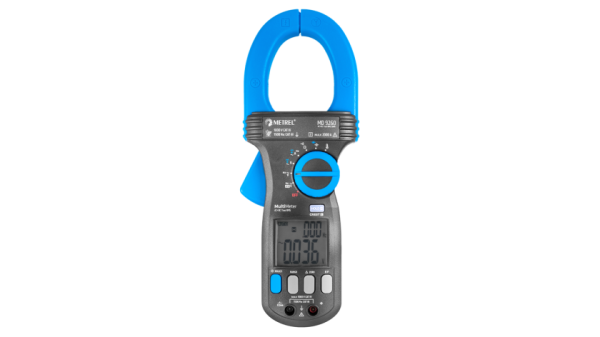

MD 9260 TRMS Photovoltaic Clamp Meter – CAT III 1500 V DC

Advanced Measurement for High-Voltage Applications

The MD 9260 TRMS Photovoltaic Clamp Meter is a professional-grade testing instrument designed for precise and reliable measurements in renewable energy, industrial power systems, and electrical maintenance. With CAT III 1500 V DC and CAT IV 1000 V safety ratings, this clamp meter ensures high-voltage protection while delivering True RMS accuracy for both sine and non-sine signals.

---

Key Features & Benefits

✅ 1500 V DC Measurement (CAT III) – Ideal for photovoltaic systems and high-voltage applications
✅ TRMS for Accurate Measurements – Ensures precise readings of both sine and distorted waveforms
✅ VFD (Variable Frequency Drive) Mode – Low-pass filter for accurate frequency measurement in noisy environments
✅ High Current Range up to 2000 A – Suitable for industrial power testing
✅ Protection Against 12 kV Transients – Enhances safety and reliability
✅ Auto & Manual Ranging – Provides flexible measurement options
✅ Relative Zero Function – Compare consecutive measurements with ease
✅ Crest Function (5 ms Peak Capture) – Captures rapid transient spikes
✅ Temperature Measurement up to 1000 °C – Supports a wide range of applications
✅ PC Connectivity (Optional) – Log and analyze data directly on a computer

---

Comprehensive Measuring Functions

✔ TRMS AC/DC Voltage & Current Measurement
✔ Capacitance & Resistance Testing
✔ Frequency Measurement (VFD Compatible)
✔ Diode Testing & Acoustic Continuity Check
✔ Non-Contact Electric Field Detection
✔ Battery & Power System Troubleshooting

---

Technical Specifications

• Dimensions: 264 x 97 x 43 mm
• Weight (Without Accessories): 608 g
• Measurement Category: CAT III 1500 V DC / CAT IV 1000 V

---

Standards & Compliance

The MD 9260 meets the highest industry standards, ensuring safety and compliance for medical, industrial, and power distribution environments:

📌 Medical & Healthcare Facilities – IEC/EN 60364-7-710 (Special installations for medical locations)
📌 Electromagnetic Compatibility (EMC):

• IEC/EN 61000-2-12, IEC/EN 61000-3-2, IEC/EN 61000-3-3 – Harmonic current & voltage fluctuation limits
• IEC/EN 61000-4-2 to IEC/EN 61000-4-8 – EMC testing and measurement techniques

📌 Safety Compliance:

• IEC/EN 61010-1, IEC/EN 61010-2-030, IEC/EN 61010-2-033 – Electrical equipment safety
• IEC/EN 61326 – EMC requirements for measurement and control equipment

---

Applications

🔹 Renewable Energy Testing – STC values & performance assessment of PV panels
🔹 Industrial Power Testing – Low-voltage power quality & UPS systems
🔹 Special Locations – Low-voltage photovoltaic & healthcare power supply
🔹 Preventative Maintenance & Troubleshooting – Voltage, current, frequency, and battery testing
🔹 Electronics & Field Service – General-purpose electrical testing & diagnostics

---
