Description
Applications
▪ Online PD spot testing (typical 5 to 10 minutes per cable):
Allows a large number of MV and HV plantitems to be tested for PD activities
▪ Online PD mapping:
Allows to identify the source of the PD along the cable with the iPD transponder during normal operation of the cable route
▪ Monitoring of PD activities during 24-hour commissioning test of MV and HV cables at normal operation voltage (according to IEC 60840)
▪ Periodically PD monitoring of critical cable routes (e.g. industrial plants) with fixed installed sensors where no direct access during normal operation is possible
Features
▪ Measurement of partial discharges in MV and HV cables up to 4 km in length without interrupting mains operation
▪ Identifying and locating potential problems before faults occur
▪ Sensitive PD detection in high noise environments due the proven DeCIFer® algorithm
▪ 4 simultaneous measurement channels
▪ Automatic PD detection and analysis
▪ Accurate cable PD mapping for defect location

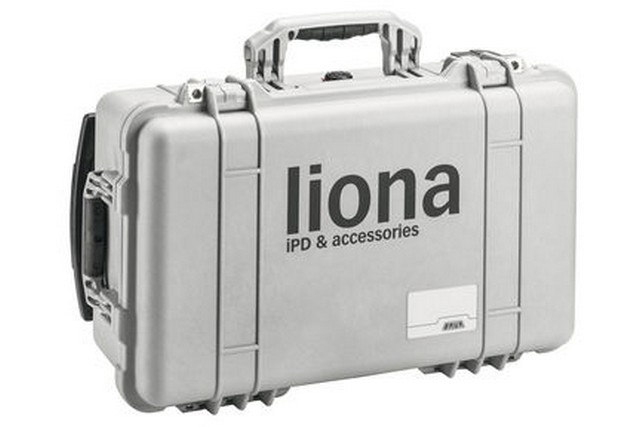

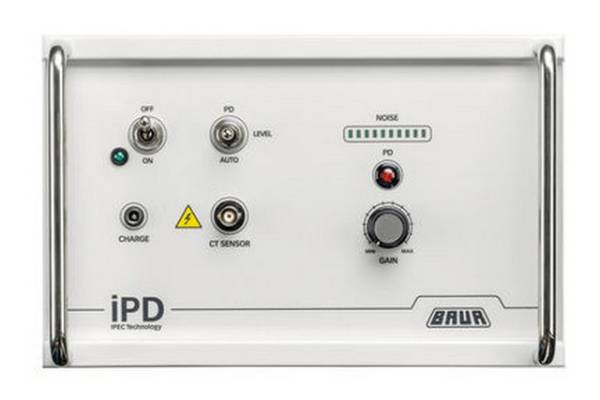

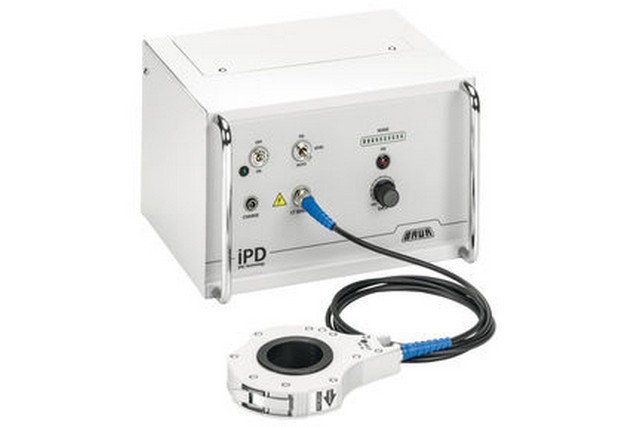

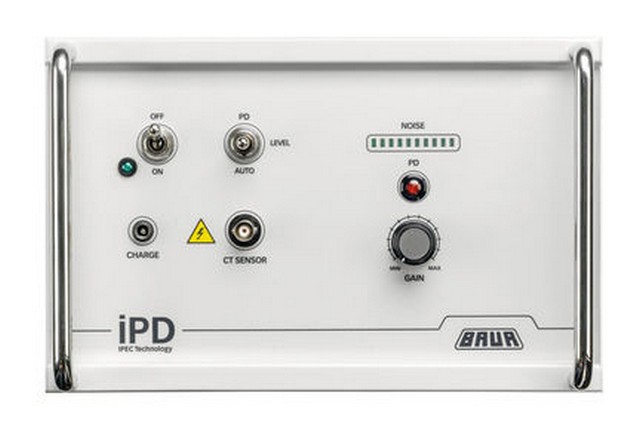

▪ Integrated cable length measurement in combination with the iPD transponder
▪ Easy reporting
▪ Integrated battery or mains operation

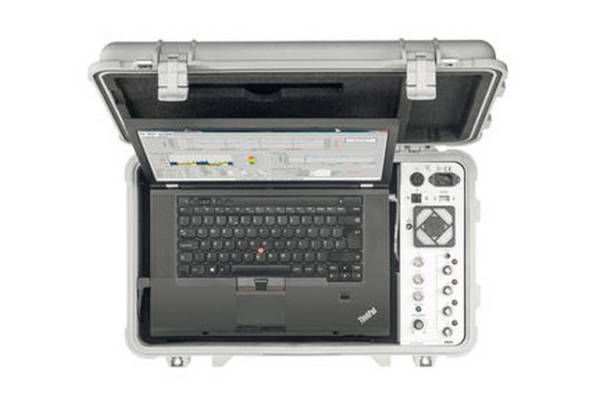

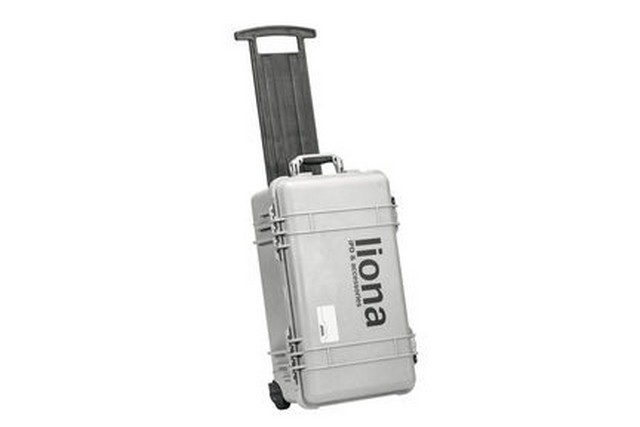

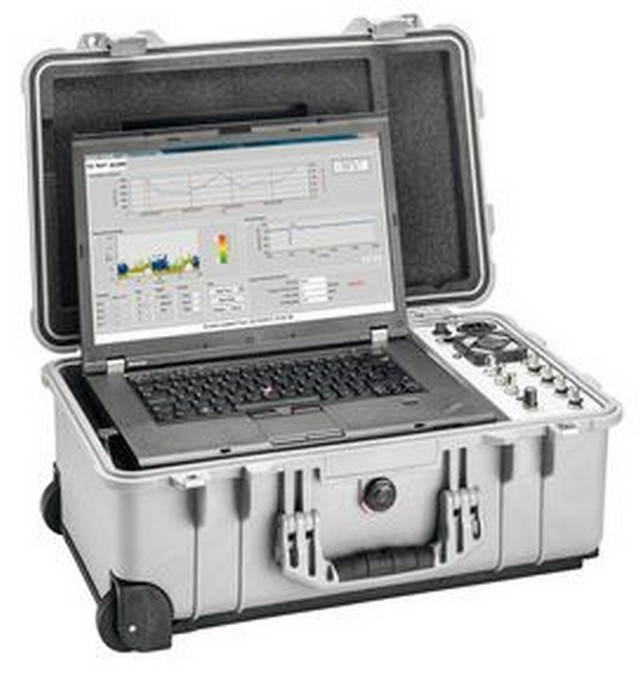

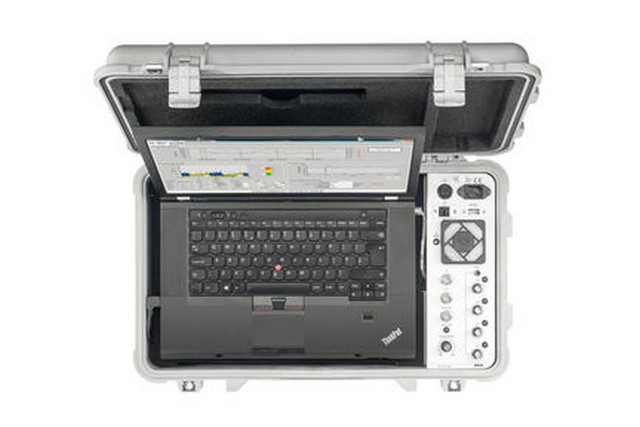

▪ Compact, lightweight device that is easy to transport
