Description
Functions
- Cable identification on de-energised cables
- Cable identification on live cables up to 400 V operating voltage*
- Suitable for
- Single- and multi-core cables
- Branched networks
Features
- Automatic recording and analysis of transmitting pulses (ATP analysis):
- Amplitude
- Interval (time)
- Pulse direction (polarity)
- Error-free detection of the pulse direction, even et a high loop resistance of up to 400 Ohm
- High pulse current up to 180 A
- Fully automatic gain adjustment
- Expert mode for manual gain settings for clear cable identification on compact substations or mixed cable routes

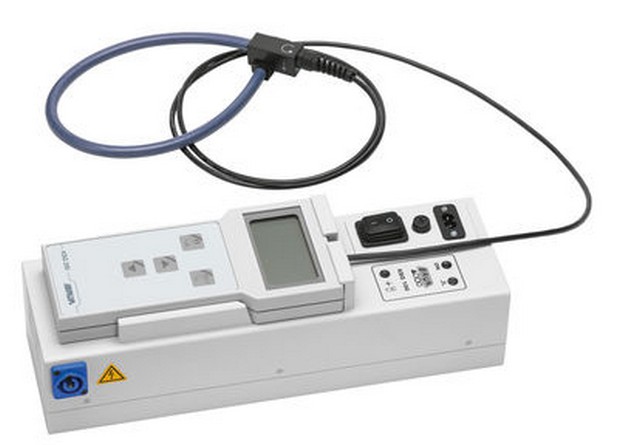

- Signal uncoupling by means of a flexcoupler for large cable diameters of up to 250 mm

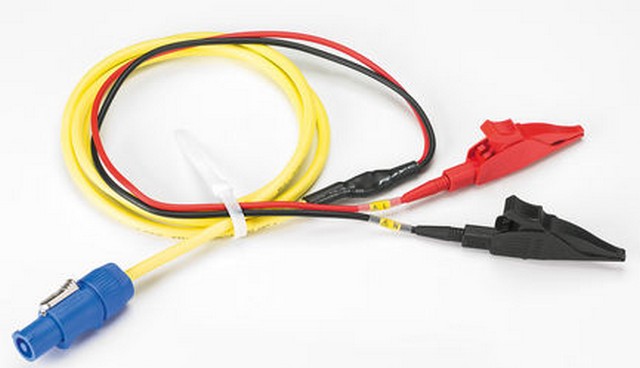

- Coupling of the transmitting pulse is effected in a galvanic or inductive manner by means of optionally available clip on current transformers
- Current measurement up to 199 A
- Essential for active occupational health and safety
- Reliable and robust protection technology

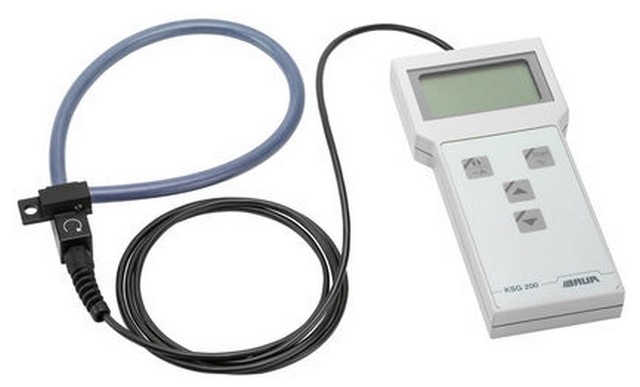

- Ergonomically designed receiver with integrated LCD display
- No batteries required for the receiver

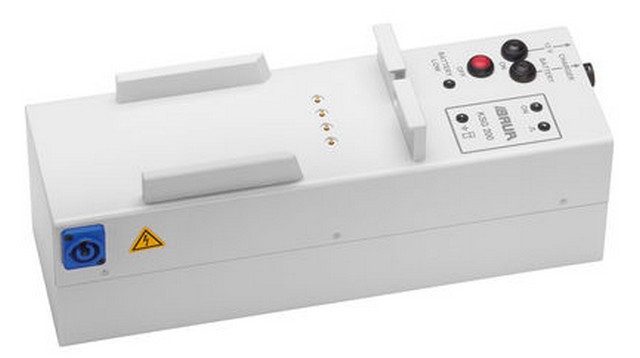

- Transmitter with integrated rechargeable battery and possibility of external power supply (12 V port) optionally available
