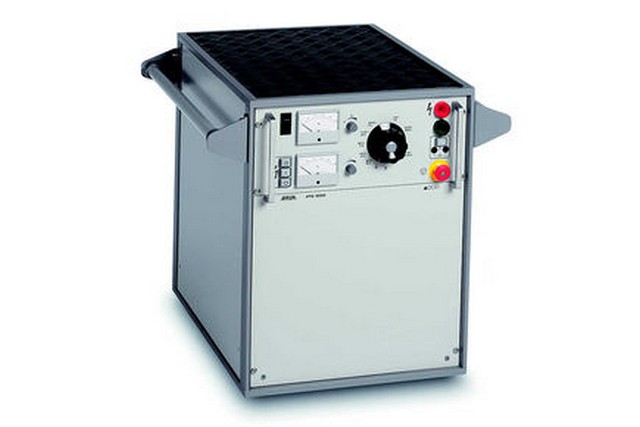

Description
Features
- Burning voltage up to DC 15 kV
- Output current up to 90 Arms
- Maximum input power 5750 VA
- Optimum adjustment of the output voltage over 8 voltage levels
- Voltage levels can be switched under full load
- Automatic switch-off on temperature rise
- Acoustic alarm on temperature rise
- Automatic discharge unit
- Switch-on interlock for high voltage
- Safety control unit according to DIN EN 50191
- Connection socket for external emergency stop unit with signal lamps
- Connection option for external ohmmeter
- As a stand-alone version or built-in module in BAUR cable fault location systems
Technical data
- Power supply 200 – 260 V, 50/60 Hz
- Option 100 – 130 V, 50/60 Hz
- with external autotransformer
- Max. power consumption 5750 VA (in short-circuit)
- Output voltage DC Max. 15 kV
- Output current AC 90 Arms
- 23 Arms
- 11 Arms
- 3.5 Arms
- 2.0 Arms
- at AC 60 V
- at AC 230 V
- at AC 500 V
- at AC 1500 V
- at AC 2600 V
- Output current DC 1.0 A
- 0.65 A
- 0.35 A
- at DC 5000 V
- at DC 8500 V
- at DC 15000 V
- Load capacity Max. 14 ?F
- Internal discharging resistance 15 kOhm
- Ambient temperature (operational) -20 -C to +55 -C
- Storage temperature -30 -C to +70 -C
- Dimensions (W x H x D) 519 x 656 x 400 mm
- Weight Approx. 92 kg
