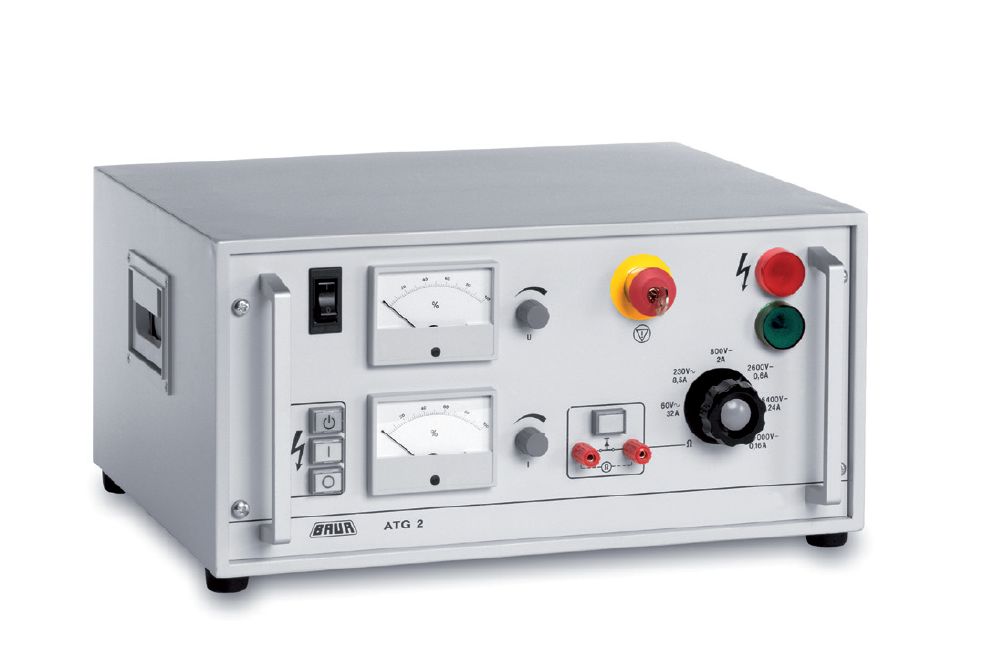

Description
Features
▪ Burning voltage up to DC 10 kV
▪ Output current up to 32 Arms
▪ Maximum input power 2300 VA
▪ Optimum adjustment of the output voltage over 6 voltage levels
▪ AC voltage level for low-voltage networks
▪ Automatic switch-off on temperature rise
▪ Acoustic alarm on temperature rise
▪ Automatic discharge unit
▪ Switch-on interlock for high voltage
▪ Safety control unit according to DIN EN 50191
▪ Connection socket for external emergency stop unit with signal lamps
▪ Connection option for external ohmmeter
▪ As a stand-alone version or built-in module in BAUR cable fault location systems
Technical data
Power supply 200 – 253 V, 50/60 Hz
Option 100 – 130 V, 50/60 Hz
with external autotransformer
Max. power consumption 2300 VA (in short-circuit)
Output current AC 32 Arms
5.8 Arms
at AC 60 V
at AC 230 V
Output current DC 2.0 A
0.6 A
0.24 A
0.16 A
at DC 800 V
at DC 2.6 kV
at DC 6.4 kV
at DC 10 kV
Load capacity Max. 10 ?F
Output voltage DC Max. 10 kV
Internal discharging resistance 100 kOhm
Ambient temperature
(operational)
-20 C to +55 C
Storage temperature -30 C to +70 C
Dimensions (W x H x D) 502 x 255 x 390 mm
Weight Approx. 41 kg
